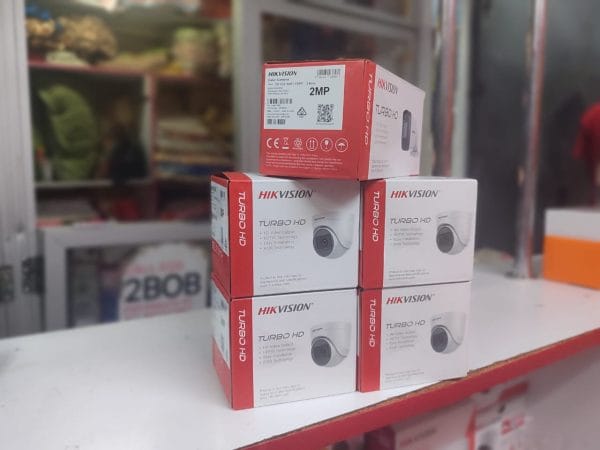

HIKVSION 1080P Turbo HD Camera

Hikvision DS-2CE76D0T-EXIPF 2 MP Indoor Fixed Turret Camera

Camera Specifications:

Image Sensor: 2 MP CMOS

Signal System: PAL/NTSC

Resolution: 1920 (H) × 1080 (V)

Frame Rate:

TVI: 1080p at 25fps/30fps

AHD: 1080p at 25fps/30fps

CVI: 1080p at 25fps/30fps

CVBS: PAL/NTSC

Minimum Illumination:

0.02 Lux @ (F1.2, AGC ON)

0 Lux with IR

Shutter Time:

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Lens Options:

2.8 mm (Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 123°)

3.6 mm (Horizontal FOV: 81°, Vertical FOV: 42°, Diagonal FOV: 100°)

Lens Mount: M12

Day & Night: ICR (Infrared Cut Filter Removable)

WDR (Wide Dynamic Range): Digital WDR

Pan: 0° to 360°

Tilt: 0° to 75°

Rotation: 0° to 360°

Image Mode: Standard (STD)/High Saturation (HIGH-SAT)

AGC (Automatic Gain Control): Yes

Day/Night Mode: Auto/Color/BW (Black and White)

White Balance: Auto

AE (Auto Exposure) Mode: DWDR, BLC (Back Light Compensation), Global

Noise Reduction: 2D DNR (Digital Noise Reduction)

Language: English

Functions: Brightness, Mirror, Smart IR, Sharpness

Video Output: Switchable between TVI, AHD, CVI, and CVBS

General Operating Conditions:

Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 90% or less (non-condensing)

Power Supply: 12 VDC ± 25%

Power Consumption: Maximum 3.3 W

Material: Plastic

IR Range: Up to 20 meters
